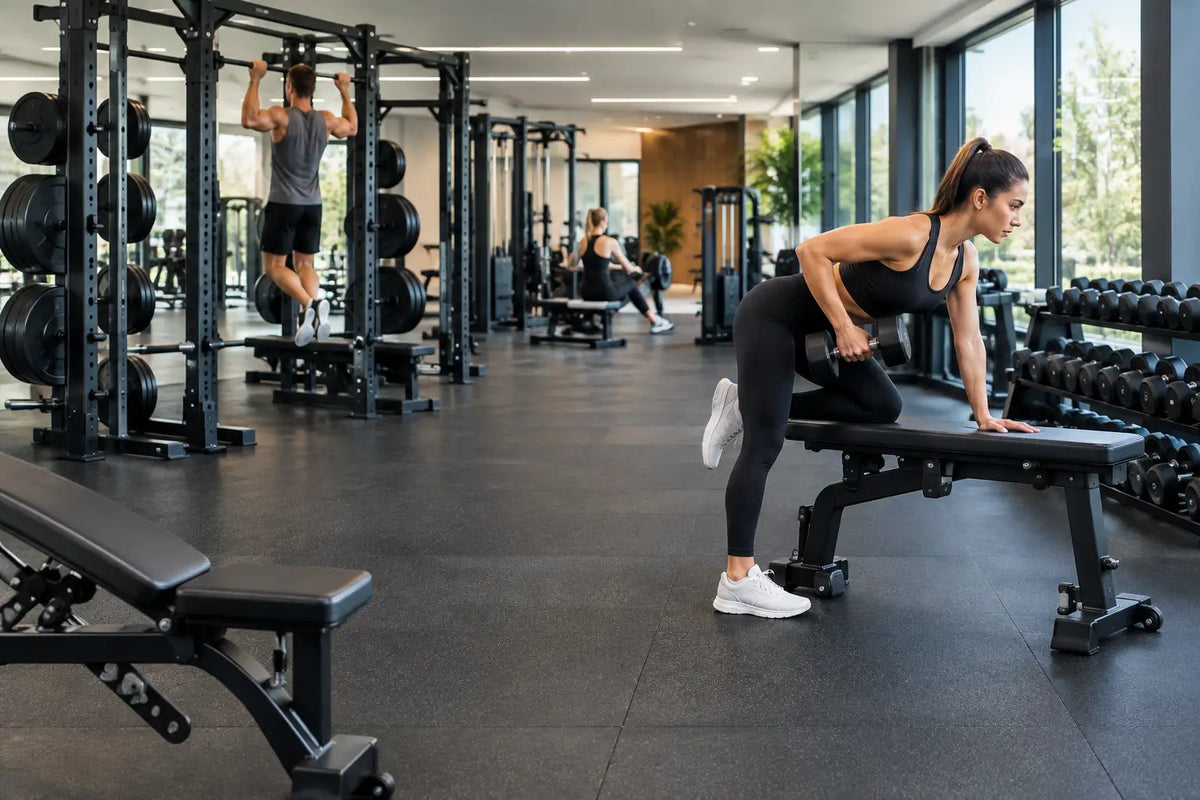

Gym Equipment Layout Design That Performs

A treadmill positioned too close to a strength station, a cable machine that blocks the main walkway, or a beautiful studio with nowhere to store accessories can compromise an otherwise premium facility. Gym equipment layout design is not simply about fitting more machines into a room. It determines how people move, train, recover, and perceive the quality of the environment from the moment they enter.

For a refined home gym, boutique studio, hotel fitness center, or full commercial facility, the best layout starts with training behavior. Equipment should support a clear sequence: arrive, warm up, train, recover, and leave without congestion or confusion. The result is a space that feels purposeful, comfortable, and ready for consistent performance.

Start Gym Equipment Layout Design With the Training Plan

Before selecting equipment, define who will use the space and what they need to accomplish there. A home gym for strength-focused training has very different priorities from a physiotherapy setting, a high-volume hotel gym, or a performance studio built around small-group conditioning.

Begin by identifying the dominant training modes. Cardio-focused facilities may need a thoughtful mix of treadmills, cross trainers, rowing machines, bikes, and air bikes. Strength-led spaces usually require a clear free-weight zone, racks, benches, cable training, plate storage, and enough room for safe barbell movement. A multifunctional wellness environment may also need dedicated space for Pilates, mobility work, massage equipment, or recovery modalities.

The common mistake is choosing equipment one piece at a time and treating the floor plan as an afterthought. A better approach is to assign zones first, then select machines with the required dimensions, user clearances, service access, and visual balance in mind. This gives you a layout that supports both daily use and long-term expansion.

Build Zones Around Movement, Not Product Categories

Organizing every treadmill in one line and every strength machine in another can be effective, but it is not the only answer. The right zoning strategy depends on the room shape, ceiling height, views, natural light, entry points, and expected user volume.

Cardio Should Feel Open and Intentional

Cardio equipment benefits from sightlines. In a residential setting, this may mean facing windows, a display wall, or a dedicated entertainment area. In a commercial gym, it often means positioning treadmills and cross trainers where users can see the wider facility without creating a bottleneck behind the machines.

Treadmills need particular attention because users approach, mount, and dismount from the rear. Their placement should account for the machine footprint, running deck movement, power requirements, and manufacturer-recommended clearance. Avoid placing them in narrow passages or immediately beside busy free-weight areas. A carefully planned cardio line looks polished, but it must also allow staff to clean, inspect, and service each unit efficiently.

Strength Training Needs Space Beyond the Equipment Footprint

A power rack, Smith machine, adjustable bench, or cable station may look compact on a specification sheet, yet the active training area extends well beyond its base. Users need room to load plates, adjust benches, change attachments, and move safely through a complete range of motion.

Free-weight areas should also be designed for predictable traffic. Place plate trees, dumbbell racks, and accessory storage close enough to reduce unnecessary carrying, but not so close that they crowd the training position. This balance improves session flow while helping the floor stay organized during peak periods.

For commercial facilities, it is often better to create a defined strength zone with durable flooring, integrated storage, and clear circulation around the perimeter than to disperse benches and dumbbells throughout the room. The space becomes easier to supervise, maintain, and reset between sessions.

Functional Training Requires Flexible Boundaries

Functional areas are highly valuable, especially for personal training, athletic conditioning, and small-group sessions. They also become disorganized quickly when no boundaries are established.

Allow this zone to work as an open training area rather than a storage area for loose equipment. A well-positioned rig, wall-mounted storage, suspension training point, sled lane where appropriate, and space for mats can support many training styles without overwhelming the rest of the facility. If the room is compact, multifunctional cable systems and modular storage can preserve versatility without sacrificing circulation.

Plan the User Journey From the Door In

The most effective layouts make the next step obvious. From the entrance, users should be able to orient themselves quickly, find the main training areas, and move through the facility without crossing directly through another person’s workout.

Consider the sequence of a typical visit. Many users start with cardio or mobility work, transition to strength or functional training, then finish with stretching or recovery. You do not need to force every user into that order, but placing complementary zones near one another reduces friction. For example, locating mobility space close to functional training makes more sense than placing it behind a dense bank of cardio equipment.

Reception, lockers, hydration points, and towel stations also influence the layout. In hospitality and corporate wellness environments, these touchpoints should support the experience without interrupting training traffic. A premium facility feels calm because the operational details have been planned, not because the room is sparsely equipped.

Use Specifications to Protect Comfort and Capacity

Dimensions matter, but measurements alone do not create a functional design. Review each product’s overall footprint, height, user access points, maximum user capacity, resistance system, and service requirements. Then assess how the equipment behaves while in use.

A rowing machine extends during each stroke. An adjustable bench changes its working area as incline positions shift. A cable machine may serve two users at once. A spin bike occupies a modest footprint, but the surrounding space needs to accommodate adjustments, entry, and active riding. These details determine whether equipment works elegantly together or feels compressed.

Ceiling height deserves equal attention. Racks, functional rigs, cable towers, and pull-up stations need suitable overhead clearance. Facilities using large fans, lighting features, or suspended elements should coordinate the fitness plan with qualified design and building professionals before installation. Electrical placement, flooring transitions, ventilation, and emergency access must also be considered early rather than corrected after delivery.

Choose Density Carefully

More equipment is not always more value. Overfilling a gym can reduce usable capacity because members wait for space, avoid crowded zones, or feel rushed during their session. It can also increase cleaning demands and make a high-quality product selection appear less premium.

For a home gym, the strongest design may center on a commercial-grade treadmill or bike, an adjustable bench, a rack or compact strength system, a cable solution, and organized free weights. This approach supports a wide range of training without turning a residential room into a crowded showroom.

For a boutique studio, equipment density should reflect the class format. If members rotate through stations, each station needs enough working room for the exercise itself, instructor visibility, and safe transitions. If the facility is built around personal training, fewer but more versatile pieces may deliver a better client experience than a large collection of single-purpose machines.

Commercial gyms have a different calculation. High-traffic cardio, selectorized strength, and free-weight zones may justify greater equipment volume, but circulation and maintenance access remain essential. The target is not maximum product count. It is maximum productive use of the floor.

Design for Storage, Cleaning, and Daily Reset

Storage is one of the clearest signs of an intelligently designed facility. Dumbbells, plates, kettlebells, mats, resistance bands, and cable attachments should have assigned homes near their point of use. When accessories are returned quickly, the floor remains safer and the space retains its visual standard throughout the day.

Build cleaning and maintenance into the plan as well. Staff need practical access around machines, racks, and wall-mounted systems. Products that are tightly packed may be difficult to wipe down, inspect, or service. In humid Gulf environments, regular care and appropriate ventilation become especially relevant for preserving equipment finishes, electronics, upholstery, and moving components.

For commercial projects, this is where a professionally developed 2D or 3D layout provides real value. It reveals pinch points, confirms sightlines, tests equipment spacing, and helps decision-makers see the finished experience before installation begins.

Let the Layout Express the Facility Standard

Gym equipment layout design should support performance, but it should also communicate what the facility stands for. A luxury hotel gym may prioritize calm views, intuitive navigation, and a refined recovery area. A strength-focused training center may lead with racks, platforms, and durable free-weight infrastructure. A modern home gym may need compact storage and equipment that complements the architecture rather than competing with it.

At 1 REP MAX Fitness, equipment selection and planning can be considered together, from machine specifications and training goals to delivery, assembly, and the realities of the finished room. That joined-up approach helps prevent expensive compromises after equipment arrives.

The right layout gives every square foot a job. Start with how people will train, leave room for how equipment actually moves, and choose products that earn their place in the space.
